รายละเอียดสินค้า:
|
| Load Capacity: | 13 Ton | Power Pack: | 1.1KW,380V |
|---|---|---|---|
| Nominal Size: | 2.2*2.5*0.6m | Platform: | Customized |
| Type: | Fixed Hydraulic Dock Ramp |
Technical Parameters

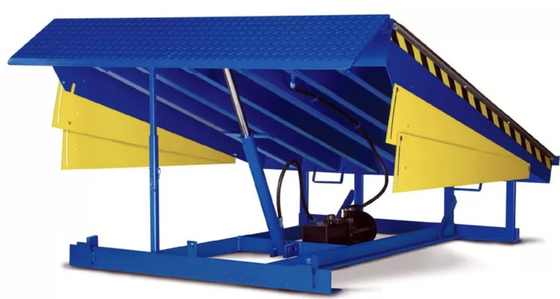

| Product | Static Dock Leveler |
| Nominal Size | 2.2*2.5*0.6m |
| Load Capacity | 13Ton |
| Power Pack | 1.1KW,380V,50Hz,3Phase |
| Top Deck Thickness | 0.8mm checkered plate |
| Oil Cylinder | 2*70mm for lifting main plate |
| Control System | single push button control system |
| Bumper Size | 250*250*100mm |
| Surface Treatment | Powder coating,thickness 70-80 micrometer |
| Lip | 400mm,15mm thickness checkered plate |
Product Description
1.Hydraulic Dock Leveler is ideal for high usage dock areas.
2.The hydraulic design consists of a simple push of the button operation
3.The operator pushes and holds the "raise" button which activates the hydraulic pump and raises the deck
4.When the deck reaches the raised position the lip automatically extends
5.The operator releases the "raise" button and the deck descends to rest on the trailer
6.The control box includes a red emergency stop button standard
7. When the truck pulls away, the deck descends to full down position, trips the limit switch, and returns automatically to the level cross traffic position
Safety Precautions:
(1)Telescopic steel toe guards on both sides
(2)Laminated bumper ×2pcs.
(3)Maintenance support rod x1PCS
